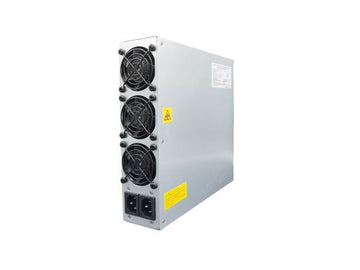

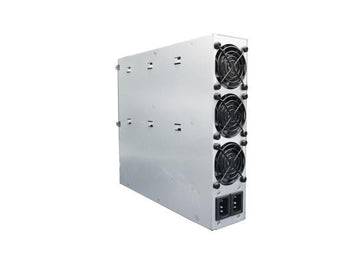

Antminer APW12 PSU 1215
Antminer APW12 PSU 1215
The APW12 power supply is designed specifically for cryptocurrency mining, a revolutionary digital currency that can be used worldwide. This power supply offers advanced system stability during the mining process and is suitable for use with Antminer S19, S19 Pro, T19, and S19j Pro. With its high conversion rate and energy-saving features, the APW12 power supply offers superior stability. When combined with the 19 series, it can provide excellent performance, allowing miners to optimize their revenue and improve operating conditions for long-term operation.
The Antminer APW12 PSU is available in several models, including the APW12 1215a, APW12 1215b, APW12 1215c, APW12 1215d, APW12 1215e, and APW12 1215f. These power supplies are designed to provide 12V-15V power to a range of Antminer models, including the E9, D7, S19+, S19A pro, S19A, S19j pro, S19j, S19i, S19, S19 Pro, and T19.
- The APW121215a/b/c versions are compatible with each other (without voltage feedback).
- The APW121215d/e/f versions are compatible with each other (with voltage feedback).
- The APW121215d/e/f version can replace a/b/c by upgrading the firmware, but a/b/c cannot be used as a replacement for d/e/f.
Quality Assurance
Some products are customized
Shipping
Delivery time is estimated to be 3-10 days
Parameters
| DC Voltage | 12V-15V |
|---|---|
| Rated Current(220 V input) | 233A |
| Ripple & Noise | <1% |
| Line Regulation | <1% |
| Setup Time | <2S |
| Short Circuit Protection | >10mS |
| DC Voltage | 12.3V |
| Rated Current(220 V input) | 15A |
| DC Voltage | 12.3V |
| Rated Current(220V input) | 12A |
| Voltage Accuracy | 12.2V---12.4V |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <2S |
| Short Circuit Protection | >10mS |
| Voltage Range | 200-240V AC |
| Frequency Range | 47-63Hz |
| Power Factor | >0.99(full load) |
| Leakage Current | <1.5mA（220V 50Hz） |
| Low-voltage Input | 80-89V AC |
| Output Short Circuit | Yes |
| Overheat Protection | Yes |
| Over-current Output | 291A-350A（protection value varies under different voltage） |
| Operating Temperature | -20-45℃ |
| Operating Humidity | 20%-90%RH（non-condensing） |
| Altitude | < 2000m |
| Dimensions | 254.6mm*251.6mm*63mm |
| Net Weight | 3.6KG |
| Cooling System | forced‐air cooling |
| Noise | 45dBA |
| Vendor: | |
|---|---|
| Weight: |
4.5 kg |
